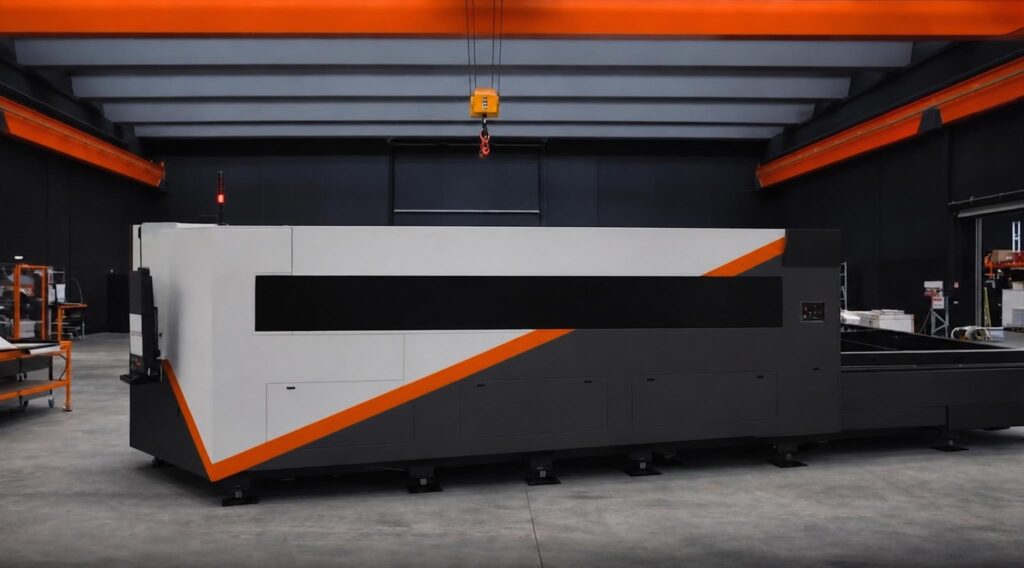

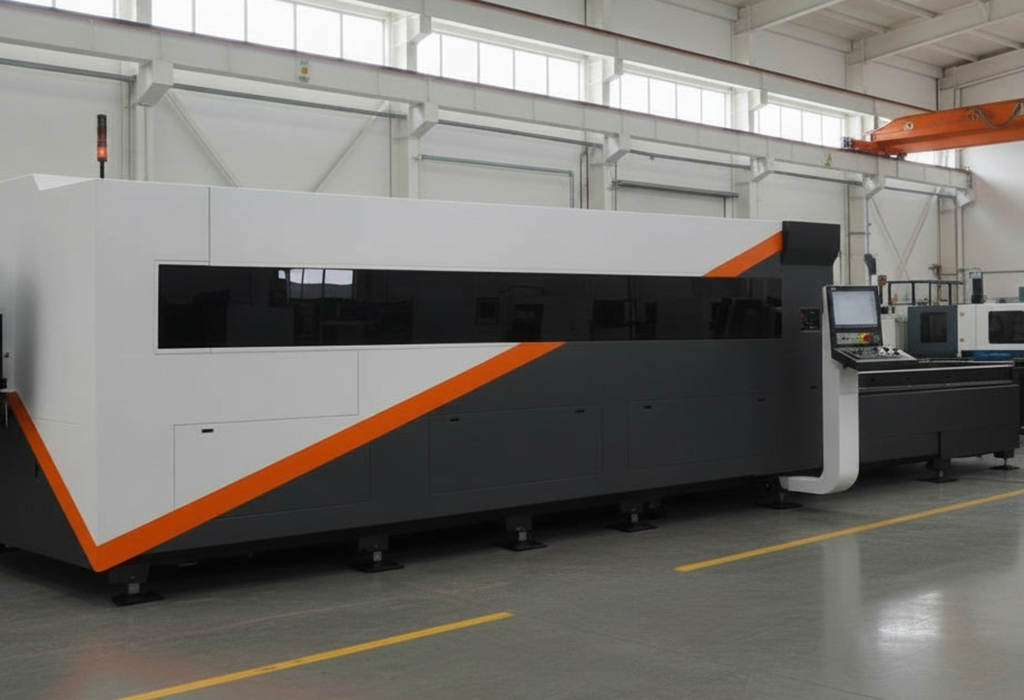

MASTER
Automatic, dual table fiber laser
Efficient. Precise. Versatile.
Fully enclosed fiber laser cutting machine developed for manufacturers that require higher output, reliable cutting quality, and efficient sheet handling
Key Benefits
- high speed and precision cutting
- safe, clean and high output operation
- precission at highest speed

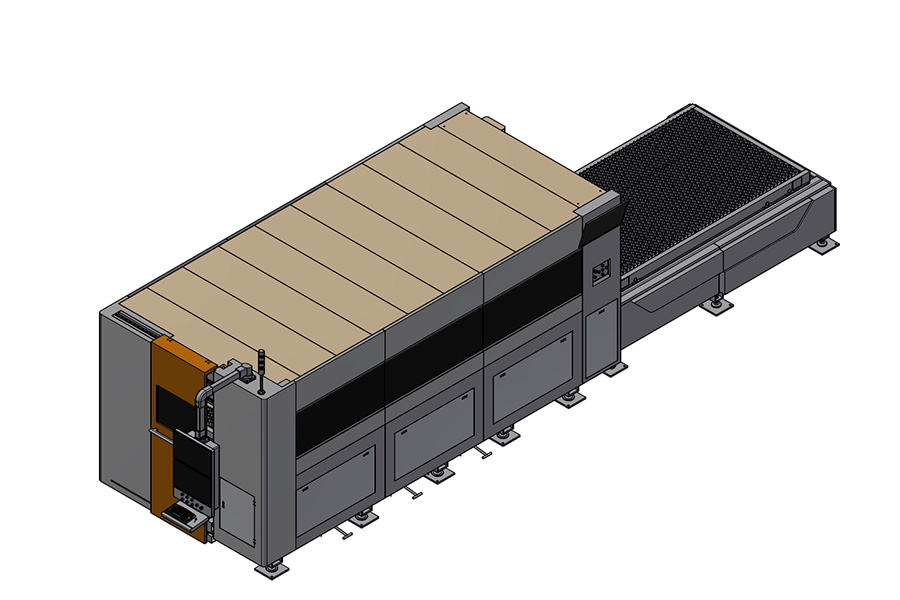

Machine details
Main cutting area
CNC control / HMi
Enclosure of complete main cutting area
Secondary cutting table
Observing windows with laser protection glass
Secondary operation panel
Designed for professional 2D sheet-metal processing, MASTER delivers clean, accurate cuts across a wide range of materials and applications. It is well suited for companies looking to increase internal production capacity, shorten turnaround times, and maintain consistent performance throughout daily or multi-shift operation.
MASTER gives manufacturers more control over production schedules, part quality, and delivery times. By reducing dependence on subcontractors and increasing available cutting capacity, the machine helps companies respond more quickly to customer requirements and changing order volumes.
Whether you are upgrading from conventional cutting equipment, replacing an existing laser system, or expanding your sheet-metal operation, MASTER provides a dependable platform for efficient production and future growth.
The automatic exchange table supports a faster and more efficient workflow. While one table is positioned inside the cutting area, the second remains available for loading, unloading, and preparation, helping operators make better use of every production hour.
The fully enclosed design improves operator protection and helps contain cutting fumes, sparks, and debris. Combined with a rigid machine structure, precision motion components, and advanced control technology, MASTER provides the stability and repeatability required for demanding industrial production.
Technical
specs
| Machine model | MASTER 3015 | MASTER 4015 | MASTER 6015 | MASTER 4020 | MASTER 6020 |
|---|---|---|---|---|---|
| working width mm | 1500 | 1500 | 1500 | 2000 | 2000 |
| working lenght | 3000 | 4000 | 6000 | 4000 | 6000 |
| number of heads | 1 | 1 | 1 | 1 | 1 |
| positioning speed | 100 m/min | 100 m/min | 100 m/min | 100 m/min | 100 m/min |
| laser power | up to 30 kW | up to 30 kW | up to 30 kW | up to 30 kW | up to 30 kW |
| smoke extraction | downdraft table | downdraft table | downdraft table | downdraft table | downdraft table |
| cooling system | included | included | included | included | included |
| head control | integrated | integrated | integrated | integrated | integrated |
| autofocus | yes | yes | yes | yes | yes |
| CNC control | HC8000B | HC8000B | HC8000B | HC8000B | HC8000B |
| IP | 54 | 54 | 54 | 54 | 54 |
